Product Overview
The Bruker MOBILE-IR II bridges the gap between laboratory-grade spectroscopy and field-ready portability. Encased in a durable, vibration-damped metal housing with an IP65 rating, this spectrometer is specifically engineered to withstand dust ingress and water exposure, making it the premier choice for mobile laboratories and environmental emergency response. At its core lies the wear-free RockSolid™ interferometer, providing permanent alignment and unmatched stability during transport and operation in challenging outdoor conditions.
Operation is optimized for field speed and accuracy, utilizing a high-sensitivity, thermoelectrically cooled (TE) MCT detector that eliminates the need for liquid nitrogen while maintaining exceptional data quality. The integrated Diamond-ATR interface features a high-pressure clamp and software-controlled heating, allowing for the rapid, non-destructive analysis of virtually any chemical material. Controlled via a ruggedized, daylight-readable touch tablet, the MOBILE-IR II utilizes automated, step-by-step workflows and extensive spectral databases to provide immediate, actionable results wherever they are needed most.
Product Demonstration
Key Features
- Off-Grid Capability: Integrated battery supports up to 7 hours of continuous operation, with an IP67-rated transport trolley for extreme mobility.
- Ruggedized Performance: IP65-rated spectrometer housing protects against harsh weather, dust, and mechanical vibrations.
- Cryogen-Free MCT Detector: Delivers the high sensitivity of laboratory-scale MCT detectors without the logistical burden of liquid nitrogen.

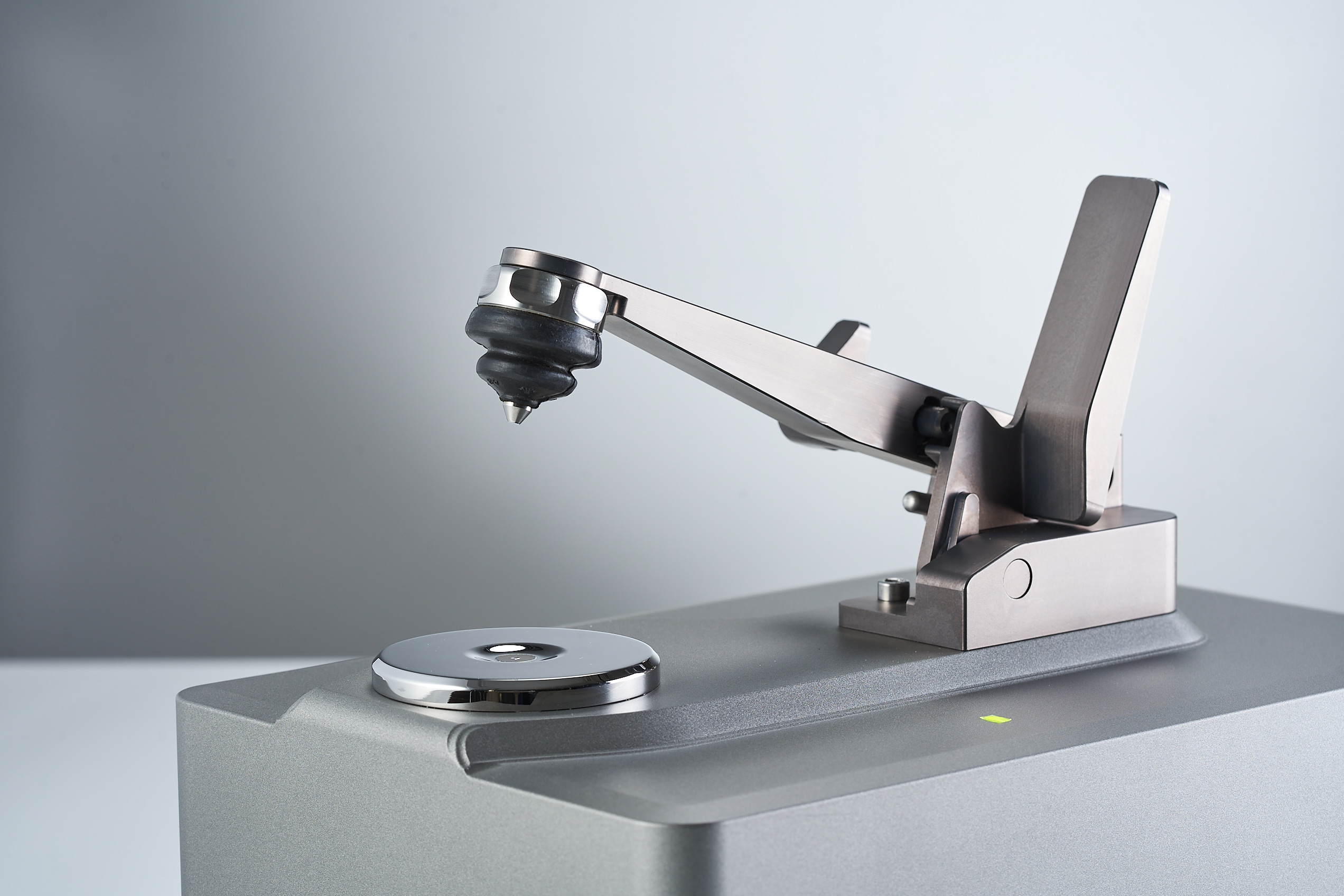

- Advanced Sampling Interface: Built-in Diamond ATR with a heavy-duty lever clamp and heating capabilities up to 80°C for optimized sample contact.
- Streamlined 2-Step Workflow: Highly intuitive software guides users through sampling and automatic database matching for rapid substance identification.
- Long-Term Reliability: Includes Bruker’s signature RockSolid™ interferometer and a laser diode with a 10-year guaranteed lifetime.
- Comprehensive Connectivity: Secure data handling via Ethernet or remote WiFi control, compatible with a ruggedized MIL-STD-810G tablet.
Specifications
| Spectral Range | 6,000 – 670 cm⁻¹ |
| Spectral Resolution | Standard: 2 cm⁻¹; Optional: 0.8 cm⁻¹ |
| Detector | Thermoelectrically cooled (TE) MCT (high sensitivity) |
| Battery Life | Approx. 7 hours of typical operation |
| Sample Interface | Diamond-ATR with integrated high-pressure clamp |
| Weight | Approx. 10.5 kg |
