Product Overview
The Bruker MPA III is the definitive "Multi-Purpose Analyzer," engineered to meet the comprehensive demands of modern quality assurance and complex method development. Its modular architecture allows users to transition effortlessly between liquid, solid, and semi-solid analysis by integrating multiple sampling techniques, including transmission, diffuse reflection, and fiber-optic probing into a single workstation. This flexibility eliminates the need for manual module exchanges, as sampling modes are entirely software-controlled through the validated OPUS software.
At the heart of the MPA III is the permanently aligned RockSolid™ interferometer, featuring gold-coated cube-corner mirrors and frictionless bearings that guarantee consistent, high-stability results even in vibration-prone settings. The system is built for longevity and low cost of ownership, supported by a 10-year warranty on both the moving parts of the interferometer and the solid-state laser. Whether identifying raw materials in a warehouse via fiber-optic probes or performing high-throughput tablet analysis with the automated 30-position sample wheel, the MPA III provides the precision and reliability required for critical industries such as pharmaceuticals, food and feed, and chemical manufacturing.
Product Demonstration
Key Features

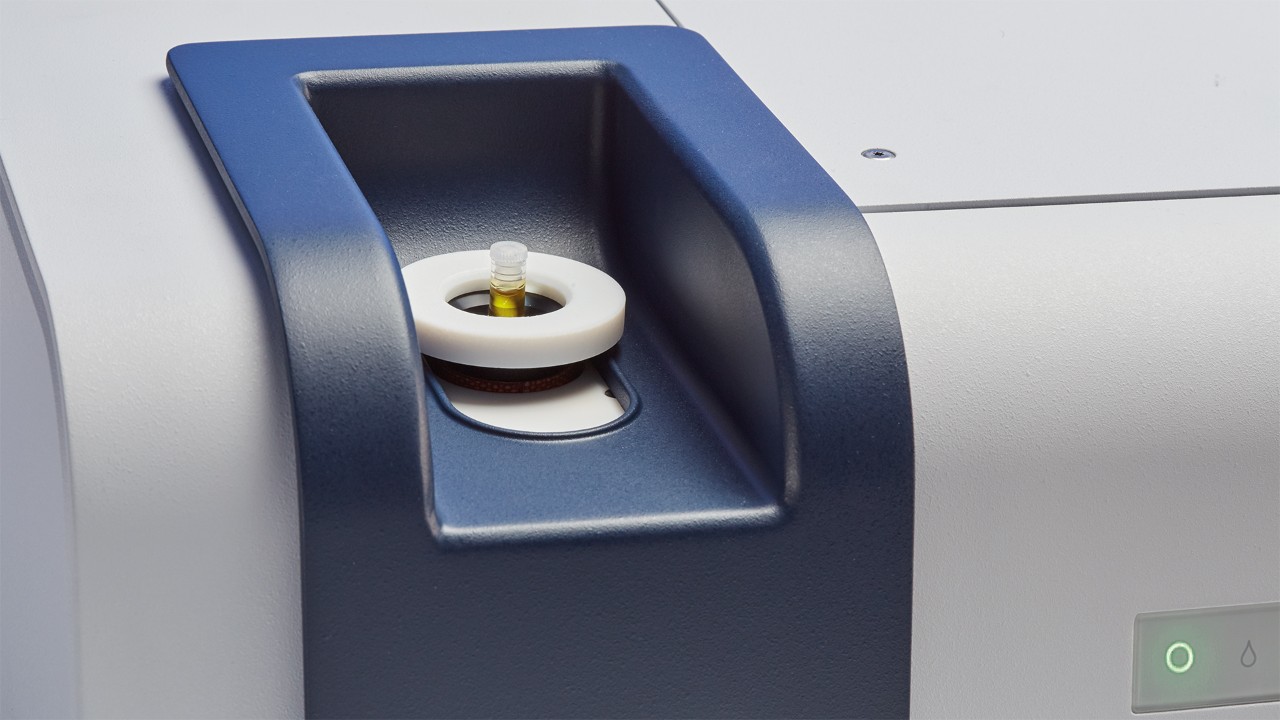

- Modular All-in-One Design: Combines sample compartments, integrating spheres, and fiber-optic modules to handle liquids, powders, solids, and tablets in one instrument.
- High-Speed Throughput: Capable of measurement speeds exceeding 250 scans per minute, significantly reducing analysis time for large sample batches.
- RockSolid™ Stability: Permanently aligned interferometer with gold-coated optics ensures maximum efficiency and eliminates the need for periodic re-alignment.
- Exceptional Warranty: Includes a 10-year warranty on the solid-state laser and the moving parts of the interferometer for long-term investment security.
- Advanced "One-Click" Software: Powered by the OPUS/LAB interface, allowing even untrained personnel to perform complex evaluations with a single click.
- Full Regulatory Compliance: Fully cGMP and 21 CFR Part 11 compliant, with integrated validation units (IVU) for automated instrument qualification.
- Easy Calibration Transfer: High mechanical precision allows for the seamless transfer of calibration models between laboratory, at-line, and process spectrometers.
Specifications
| Spectral Range | 11,500 – 4,000 cm⁻¹ |
| Spectral Resolution | Better than 2 cm⁻¹ |
| Interferometer | RockSolid™ (Permanently aligned, shock insensitive) |
| Detector | High-sensitivity x-InGaAs (thermoelectrically cooled) |
| Wavenumber Accuracy | Better than 0.1 cm⁻¹ @ 7,181 cm⁻¹ |
| Measuring Speed | >250 scans/min @ 8 cm⁻¹ resolution |
